陕西宏峰石油量规API石油螺纹量规 NC23数字型钻具量规
作者:管理员    发布于:2021-01-08 10:04:14    文字:【】【】【
摘要:宝鸡石油量规API石油螺纹量规 NC23数字型钻具量规 陕西宏峰石油量规 宝石API螺纹量规NC 50数字型钻具量规货期 成量石油量规API石油螺纹量规 NC23数字型钻具量规价格 NC70 NC77数字型石油钻具接头螺纹量规/NC螺纹环规/NC螺纹塞规 NC Connections - Rotary Shoulder Connection - Thread Plug and Ring Gages - API Spec 7-2.



进口石油量规API石油螺纹量规 NC23数字型钻具量规

宝鸡石油量规 宝石API螺纹量规NC 50数字型钻具量规

宏峰石油量规API石油螺纹量规 NC23数字型钻具量规

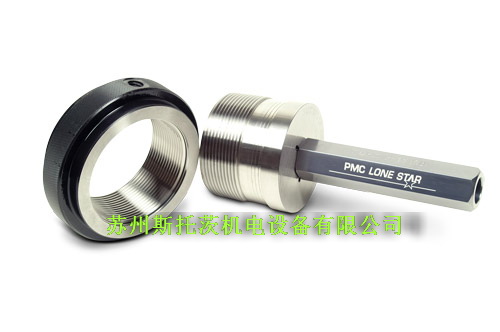

美国进口PMC NC70 NC77数字型石油钻具接头螺纹量规/NC螺纹环规/NC螺纹塞规

NC Connections - Rotary Shoulder Connection - Thread Plug and Ring Gages - API Spec 7-2.



数字型石油钻具接头螺纹量规,数字型石油钻杆接头螺纹量规

规格

牙数

T.P.F

螺纹牙形

锥度TAPER

牙型角ANGLE

SIZE

T.P.I

THD FORM

NC10

6

1 1/2

V-0.055R

1:8

60°

NC12

6

1 1/2

V-0.055R

1:8

NC13

6

1 1/2

V-0.055R

1:8

NC16

6

1 1/2

V-0.055R

1:8

NC23

4

2

V-0.038R

1:6

NC262 3/8IF

4

2

V-0.038RV-0.065

1:6

NC312 7/8IF

4

2

V-0.038RV-0.065

1:6

NC35

4

2

V-0.038R

1:6

NC383 1/2IF

4

2

V-0.038RV-0.065

1:6

NC404FH

4

2

V-0.038RV-0.065

1:6

NC44

4

2

V-0.038RV-0.065

1:6

NC464 IF

4

2

V-0.038RV-0.065

1:6

NC504 1/2IF) (5 X.H

4

2

V-0.038R

1:6

NC56

4

3

V-0.038R

1:4

NC61

4

3

V-0.038R

1:4

NC70

4

3

V-0.038R

1:4

NC77

4

3

V-0.038R

1:4

数字型石油钻具接头螺纹量规,数字型石油钻杆接头螺纹量规

钻杆螺纹量规包括:螺纹环规和螺纹塞规

螺纹量规采用轴承钢或高强度合金工具钢制造,硬度高、耐磨,尺寸稳定可靠,表面处理采用热处理和冷处理,造型美观,轻巧方便。量规工作面部分硬度可达到58-62度。

钻具接头螺纹量规的种类:

1、数字型(NC

2、正规型(REG

3、贯眼型(FH

4、内平型(IF



1、 数字型螺纹量规

这是以螺纹基面中径的英寸和十分之一英寸的数字值表示的螺纹。所有规格螺纹采用V-0.038R平顶圆底三角形牙型,这种牙型的特点是圆形牙底半径为0.038英寸(0.965mm),其牙型见图1。数字型螺纹量规是API推荐优先使用的螺纹,该型螺纹还有1:61:4两种型式,应用于方钻杆、钻杆、钻铤、钻具稳定器等钻井工具,在大庆油田NC50螺纹还用在钻头上。

螺纹型式V-0.038R指的是螺纹牙底圆弧半径0.038in0.965mm)的V型螺纹,即数字型螺纹量规。V-0.040V-0.050V-0.065V-0.055中各自的数字代表V型螺纹牙顶宽度的英寸数。这四种螺纹的牙底形状完全不同,V-0.040的螺纹牙底圆弧半径为0.020in0.51mm),V-0.050的螺纹牙底圆弧半径为0.025in0.635mm),V-0.065V-0.055的螺纹牙底是平面。

2.、正规型螺纹量规

该型钻杆接头螺纹曾用于连接内加厚钻杆,形成钻杆接头内径小于加厚内径,而钻杆加厚端内径又小于管体内径的通径。API设计正规型螺纹的主要目的是将其应用于钻头连接,由于钻头位于钻柱末端,在这里螺纹牙底的应力集中现象的存在与否无关紧要,因而API把它们所有规格全数保留下来。该型使用V-0.050V-0.040牙型,在API SPEC 7第四十版中新增添了使用V-0.055(平牙底,牙顶宽度为0.055英寸,1.397mm)牙型的1REG11/2REG两种规格螺纹。

3、 贯眼型螺纹量规

该型钻杆接头螺纹量规连接内外加厚钻杆,形成钻杆接头内径和加厚端内径相等,而均小于钻杆管体内径的通径。该型螺纹的规格虽然为数不多,但却使用了V-0.065V-0.050(牙底为圆弧,牙顶宽度为0.050英寸,1.27mm)和V-0.040(牙底为圆弧,牙顶宽度为0.040英寸,1.02mm)三种牙型,曾经被广泛用于水龙头、方钻杆、钻杆、钻铤和钻头。现在除51/2FH65/8FH两种使用V-0.050牙型、1:6锥度的大规格螺纹外,其余均在API淘汰螺纹之列。其中*使用V-0.065牙型的4FH与内平型螺纹一样被数字型螺纹NC40所取代。

4、 内平型螺纹量规

该型钻具接头螺纹量规连接外加厚或内外加厚钻杆,形成钻杆接头内径、管体加厚内径与管体内径相等或近似的通径。所有规格螺纹均采用V-0.065平顶平底三角形牙型,这种牙型为平牙底,牙顶较宽度为0.065英寸(1.651mm)。除51/2IF外,其它规格螺纹的因结构尺寸与相应的数字型螺纹完全相同,故具有互换性。该型螺纹因其牙型结构易导致应力集中,API已将其淘汰,其中包括41/2IF4IF,它们就是曾经在我油田被大量使用的4104114A104A11,取而代之的是NC50NC46数字型螺纹量规。



Work Plug Assembly M15 x 1.5 5H
Work Plug Assembly 3.75-4 STUB ACME 2G LH
Work Plug Assembly 2-4.5 UNC 2B
Ring Gage Set M5 x .5 4h
LOCATION GAGE 1/2-20 UNF
Ring gage Drawing M175 x 1.5 4g SPL MOD
Set Plug Assembly M175 x 1.5 5g SPL MOD
Ring Gage Set 9/16-18 UNJF 3A
Plug Assembly 1/4-18 NPSI
Plug Assembly 1/8-27 NPSI
PLUG ASSEMBLY 1/8 - 27 NPSF
PLUG ASSEMBLY 3/8-18 NPSF
PLUG ASSEMBLY 1/2-14 NPTF
PLUG ASSEMBLY 1/2-14 NPTF
Ring Gage Set 1 5/8-14 UNS 2A
RING GAGE SET 1-32 UN 2A
Ring Gage Set 2 3/8-16 UN 2A
Ring Gage Set 1 3/4-16 UN 2A
Work Plug Assembly 1.5625-12 STUB ACME 2G
Ring Gage Set truncated Crest G3/4 ISO228-2 SYS A
Work Plug Assembly 1.750-5 UNC 2B
Reversible Gage 2.06mm Carbide Class ZZ
Reversible Gage 8.03mm Carbide Class ZZ
per spec sheet .1550/.1570
Set Plug Assembly #10-32 UNF 3A SPL
Work Plug Assembly M22 x 1.5 6G
Work Plug Assembly 1 3/4-6 STUB ACME 2G
Pin Gage Set .1130 - .1170";.0001" increments
Pin Gage Set .1130 - .1170";.0001" increments
Pin Gage Set .0420 - .0460"; .0001" increments
Pin Gage Set .0420 - .0460"; .0001" increments
Pin Gage Set .1245-.1295"; .0001" increments
Pin Gage Set .1245 - .1295"; .0001" increments
Pin Gage Set .0210 - .2500"; .001" increments
Pin Gage Set .0210 - .2500" .001" increments
Pin Gage Set .0110 - .2500"; .001" increments
Pin Gage Set .0110 - .2500"; .001" increments
Work Plug Assembly 3 1/4-14 UNS 2B
Ring Gage Set 3 1/4-14 UNS 2A
Ring Gage Set 7/8-9 UNRC 2A
Plug Assembly 1/4-18 ANPT
Plug Assembly 1/4-18 ANPT
Plug Assembly 1/2-14 ANPT
Plug Assembly 1/2-14 ANPT
Ring Gage 1/4-18 ANPT
Ring Gage 1/4-18 ANPT
Ring Gage 1/4-18 ANPT
Work Plug Assembly 3.5620-10 STUB ACME 2G
per special dimension .1190/.1210
Ring Gage Set M1.2 - .25 6g
  Rp 3/4 ISO 7-2:2000/EN10226
  Rp 1/2 ISO 7-2:2000/EN10226
Ring Gage Set M1.4 x .3 6h
Ring Gage Set M1.4 x .3 6g
Ring Gage Set M1.6 x .35 6h
RING SET #0-80 UNF 2A STL
Work Plug Assembly M1.6 x .35 6G
Work Plug Assembly M1.4 x .3 6G
Work Plug Assembly M1.4 x .3 5G
Work Plug Assembly 7/16-20 UNF 2B
Work Plug Assembly 3/8-.0625P-.1250L UNC 2B
Work Plug Assembly 1/4-24 UNS 2B
Ring Gage R1 1/4 ISO 7-2:1982
Ring Gage R1 1/4 ISO 7-2:1982
Plug Assembly Rc1/2 ISO 7-2:1982
Plug Assembly Rc1/2 ISO 7-2:1982
Ring Gage 1-11 BSPT
Ring Gage 1-11 BSPT
Plug Assembly 3/4-14 BSPT
Plug Assembly 3/4-14 BSPT
Plug Assembly G1 ISO 228-2 Truncated Crest
Ring Set G3/4 ISO 228-2 Truncated Crest
Ring Gage R1/2 ISO 7-2:1982
Ring Gage R1/2 ISO 7-2:1982
Ring Gage Set .3125-24 UNJF 3A
Ring Gage Set 1.125-18 UNJEF 3A
Work Plug Assembly 1.125-18 UNJEF 3B
PLUG GAGE .0263 CLASS X
Work Plug Assembly #6-32 UNC 2b SPL
Plug Assembly 1-11 1/2 ANPT
Ring Gage Set 1.1875-16 UNJ 3A
Set Plug Assembly 1.1875-16 UNJ 3A
Ring Gage Set 1/4-36 UNS 2A
Set Plug Assembly 1/4-36 UNS 2A
Work Plug Assembly 1/4-36 UNS 2B
Hex Assembly .0791/.0807
Hex Assembly .0947/.0968
Plug Assembly 3/8-18 PTF
Plug Assembly 3/8-18 PTF
Plug Assembly 3/8-18 PTF
Work Plug Assembly 6.4375-6 STUB ACME 2G
Work Plug Assembly 2-6 STUB ACME 2G
Pin Gage Set .1000-.1260"; .001" increments
TAPERLOCK ASSEMBLY M1.6-.35 6H
Work Plug Assembly #8-36 UNF 2B
Ring Gage Set ASME B1.2-1983 1 3/8-14 UNS 2A
Set Plug Assembly 1 3/8-14 UNS 2A
Work Plug Assembly #12-32 UNEF 3B SPL
TAPERLOCK ASSEMBLY 1/4-28 UNF 2B
Work Plug Assembly M5 x .8 6G
Square Gage Assembly per Drawing SG001
Ring Gage Set 1-20 UNEF SPL
Set Plug Assembly for above 1-20 UNEF SPL
Work Plug Assembly .391-32 UNS 2B SPL
Ring Gage Set M3.5 x .6 4g6g
Set Plug Assembly M3.5 x .6 4g6g
Work Plug Assembly 5/16-48 UNS 2B
Pin Gage Set 6.0mm - 7.20mm; .02mm increments
Work Plug Assembly #0-80 UNF 2B LH
Hex Assembly SG-002
Work Plug Assembly 3 1/8-8 UN 2B
Work Plug Assembly 1 3/4-5 UNC 2B
Hex Gage Assembly 3.512MM
Ring Gage Set M5 x .8 6e
Ring Gage Set M6 x 1.0 6e
Set Plug Assembly M5 x .8 6e
Set Plug Assembly M6 x 1.0 6e
Work Plug Assembly 1/8-28 BSPP
Work Plug Assembly PG7
Ring Gage Set 3 5/8-12 UN 2A
Set Plug Assembly 3 5/8-12 UN 2A
Ring Gage Set 2-16 UN 2A SPL
Set Plug Assembly 2-16 UN 2A SPL
TAPERLOCK ASSEMBLY M11.0 X .75 6H
RING SET #8-32 UNC 2A STL
RING SET #12-24 UNC 2A STL
RING SET M6.00 X .75 6g STL
Pin Gage Set .3113 - .3137"
Pin Gage Set .3168 - .3192"
Pin Gage Set .3738-.3762"
Pin Gage Set .4988-.5012"
Pin Gage Set .4963-.4987"
Pin Gage Set .5013-.5037"
Pin Gage Set 7.970mm - 8.030mm .0025mm increments
Pin Gage Set 11.9075mm - 11.9675mm
Pin Gage Set 11.970mm - 12.030mm
Pin Gage Set 12.0325mm - 12.0925mm
Ring Gage Set 6.4375-6 STUB ACME 2G
Set Plug Assembly 6.4375-6 STUB ACME 2G
Ring Gage Set 3/8-24 UNJF 2A
Ring Gage Set 1/2-20 UNJF 3A
Ring Gage Set .5625-18 UNJF 3A
TAPERLOCK ASSEMBLY 3/8-16 UNC 2B
RING SET M14.0-1.50 6g STL
TAPERLOCK ASSEMBLY M14.0-1.50 6H
Ring Gage Set M14 x 1.5 6h
Work Plug Assembly M106x 1.5 6H SPL
Ring Gage Set M106 x 1.5 6g
Set Plug Assembly M106 x 1.5 6g
Work Plug Assembly M10 x .5 6G
Work Plug Assembly 7/16-28 UNEF 2B LH
RING SET 5/16-24 UNF 2A STL
Work Plug Assembly M2.3 x .4 6H
Work Plug Assembly M29 x 1.5 6H
Ring Gage Set M105 x 1.5 6g
Set Plug Assembly M105 x 1.5 6g
Ring Gage Set #2-56 UNRC 3A
Set Plug Assembly #2-56 UNRC 3A
Plug Gage 1/8-27 PTE
Plug Gage 1/8-27 PTE
Plug Gage 1/8-27 PTE
Ring Gage Set M12 x 1.0 6h
Ring Gage Set M10 x 1.0 6h
Ring Gage Set M10 x .5 6g
Work Plug Assembly 5/16-48 UNS 2B
Ring Gage Set M4.2 x .4 6g
Work Plug Assembly 9/32-40 UNS 2B
Work Plug Assembly 11/32-28 UNS 2B
Ring Gage Set 3/8-40 UNS 2A
Reversible Assembly 15.8801mm x 5"
Reversible Assembly 15.8673mm x 5"
Ring Gage Set 5/16-18 UNC 2A LH SPL
Set Plug Assembly 5/1-18 UNC 2A LH SPL
Work Plug Assembly 1/4-.0500P-.1000L UNC 2B
Set Plug Assembly M3 x L1P.5 6g
Work Plug Assembly 3/8-.0625P-.1250L UNC 2B
Set Plug Assembly #10-56 UNS 2A
Ring Gage R1/4 ISO 7-2:1982
Ring Gage Set Truncated Crest G1/2 ISO228-2 - A
Set Plug Assembly Truncated Crest G1/2 ISO228-2 -A
Ring Gage 1/2-14 ANPT
Ring Gage 1/2-14 ANPT
Ring Gage 1/4-18 ANPT
Ring Gage 1/4-18 ANPT
Ring Gage 1/4-18 ANPT
Ring Gage 1/2-14 ANPT
Ring Gage 3/4-14 ANPT
Ring Gage 3/4-14 ANPT
Ring Gage 3/4-15 ANPT
Ring Gage Set 3 3/4-8 UN 2A
Ring Gage Set 3 1/2-12 UN 2A
Set Plug Assembly 3 3/4-8 UN 2A
Set Plug Assembly 3 1/2-12 UN 2A
Ring Gage Set 1 1/8-24 UNS 2A
Set Plug Assembly 1 1/8-24 UNS 2A
Gage Assembly .8495/.8530
Reversible Assembly #10-32 UNF 1
Work Plug Assembly 1 7/8-20 UN 2B
Work Plug Assembly 2 7/8-16 UN 2B
Work Plug Assembly 2 1/2-16 UN 2B
Work Plug Assembly 2-20 UN 2B
Work Plug Assembly 1 3/4-16 UN 2B
Ring Gage Set 7/8-18 UNS 2A
Work Plug Assembly 1 3/4-18 UNS 2B
Work Plug Assembly 7/8-18 UNS 2B
Ring Gage Set 1 7/8-20 UN 2A
Work Plug Assembly 3/4-18 UNS 2B
Work Plug Assembly 7/8-18 UNS 2B
Work Plug Assembly 15/16-18 UNS 2B
Ring Gage Set 3/4-18 UNS 2A
Work Plug Assembly 5/8-18 UNF 1B
Ring Gage Set 3 5/8-16 UN 2A
Ring Gage Set 3 3/4-16 UN 2A
Ring Gage Set 3 1/4-16 UN 2A
Ring Gage Set 2 7/8-12 UN 2A
Ring Gage Set 2 3/8-16 UN 2A
Ring Gage Set 2 1/8-16 UN 2A
Ring Gage Set 2 5/8-12 UN 2A
Ring Gage Set 2-16 UN 2A
Ring Gage Set 1 7/8-14 UNS 2A
Ring Gage Set 5 3/4-16 UN 2A
Ring Gage Set 6-16 UN 2A
Work Plug Assembly 2-16 UN 2B

石油量规:API钻杆螺纹量规、API抽油杆螺纹量规、API套管圆螺纹量规、API套管偏梯形螺纹量规、API管线管量规等。

单项仪:螺纹高度检测仪、螺纹锥度检测仪、螺纹螺距检测仪、螺纹中径检测仪等。

油管螺纹量规、抽油杆量规(CYG)、油管螺纹量规(TBGUP TBG)、套管螺纹量规(短圆型CSG、长圆型LCSG)、套管偏梯形螺纹量规(BCSG)、钻具接头螺纹量规(数字型NC、正规型REG、贯眼型FH)、钻杆量规(DPUP DP)、管线管螺纹量规(LP)、抽油泵螺纹量规、抽油杆机用丝锥、抽油杆接箍用挤压丝锥、抽油杆接箍用切削丝锥、抽油杆接箍用划钻、挤压油、板牙等



  苏州斯托茨机电设备有限公司专业代理销售国产定制斯托茨牌螺纹环塞规,国产HBPV量规、国产BPV螺纹塞规、国产非标环塞规,国产90度螺纹环塞规、国产ACME量规,货期10-12天 含第三方计量报告,更多信息欢迎来电咨询。同时我们代理德国莱尔麦斯LMW德标螺纹规美国DORSEY Metrology螺纹规、德国IBR气动量仪、日本mitutoyo三丰粗糙度仪、SJ-210粗糙度仪、海克斯康三坐标、便携式CMM、美国GSG螺纹规等。
