XT螺纹-测量内螺纹直径的最佳方法
产品简介：

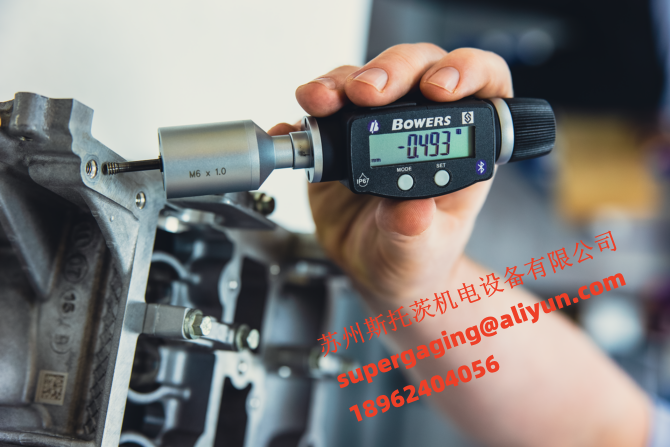

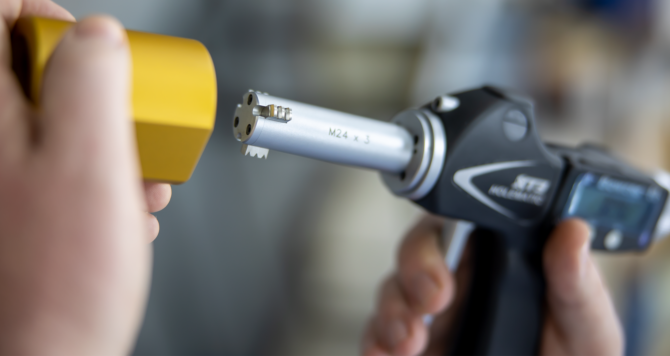

BOWERS XT Xtreme数显内径千分尺采用传统高质量棘齿限位和IP65防水电子系统。其独特的加长设计与特殊定制测头配合可满足复杂的，难度高的测量要求。BOWERS提供特殊测头用于测量螺纹，环槽，花键，深孔，以及满足客户其它特定场合的测量要求。 测头可单个或成套提供，XT数显内径千分尺具有量程大，易操作，可配特殊测头等优点。XT系列的测头及环规都配有UKAS证书。
产品特点：
IP65防水标准
双按钮简单操作
大屏幕显示
3个预设存储
RS232输出口
可测范围2-300mm(0.08″-12″)
2点式测量范围2-6mm; 3点式测量范围6-300mm
硬质合金测面
盲孔测量范围2-6mm及大于12.5mm
可提供加长杆测量深孔
棘齿限位
单个或成套都配有环规
所有环规提供UKAS证书
所有XT系列千分尺提供UKAS证书
每个XT 系列千分尺都有单独的系列号

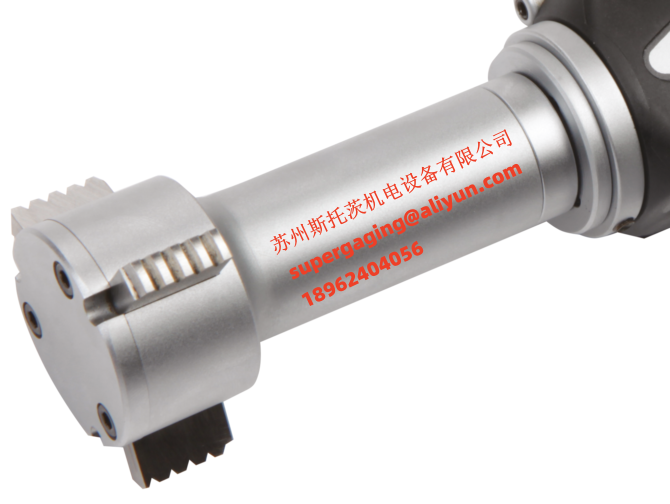

可选配特殊设计的专业测头，如螺纹，槽，键，弧形等
符合DIN863标准
产品参数：
型号 | 尺寸范围 |
XTD1M | 2.0 - 2.5MM |
XTD2M | 2.5 - 3.0MM |
XTD3M | 3.0 - 4.0MM |
XTD4M | 4.0 - 5.0MM |
XTD5M | 5.0 - 6.0MM |
XTD6M | 6 - 8MM |
XTD8M | 8 - 10MM |
XTD10M | 10 - 12.5MM |
XTD12M | 12.5 - 16MM |
XTD16M | 16 - 20MM |
XTD20M | 20 - 25MM |
XTD25M | 25 - 35MM |
XTD35M | 35 - 50MM |
XTD50M | 50 - 65MM |
XTD65M | 65 - 80MM |
XTD80M | 80 - 100MM |
XTD100M | 100 - 125MM |
XTD125M | 125 - 150MM |
XTD150M | 150 - 175MM |
XTD175M | 175 - 200MM |
XTD200M | 200 - 225MM |
XTD225M | 225 - 250MM |
XTD250M | 250 - 275MM |
XTD275M | 275 - 300MM |
XTD1I | 0.080 - 0.100" |
XTD2I | 0.100 - 0.120" |
XTD3I | 0.120 - 0.160" |
XTD4I | 0.160 - 0.200" |
XTD5I | 0.200 - 0.250" |
XTD6I | 1/4 - 5/16" |
XTD8I | 5/16 - 3/8" |
XTD10I | 3/8 - 1/2" |
XTD12I | 1/2 - 5/8" |
XTD16I | 5/8 - 3/4" |
XTD20I | 3/4 - 1" |
XTD25I | 1 - 1 3/8" |
XTD35I | 1 3/8 - 2" |
XTD50I | 2 - 2 5/8" |
XTD65I | 2 5/8 - 3 1/4" |
XTD80I | 3 1/4 - 4" |
XTD100I | 4 - 5" |
XTD125I | 5 - 6" |
XTD150I | 6 - 7" |
XTD175I | 7 - 8" |
XTD200I | 8 - 9" |
XTD225I | 9 - 10" |
XTD250I | 10 - 11" |
XTD275I | 11 - 12" |
|
Product Code |
Description |
Price |
|
THRH-M10X1.0 |
M10 X 1.0 Thread
Measuring Head |
POA |
|
THRH-M10X1.25 |
M10 X 1.25 Thread
Measuring Head |
POA |
|
THRH-M10X1.5 |
M10 X 1.5 Thread
Measuring Head |
POA |
|
THRH-M12X1.0 |
M12 X 1.0 Thread
Measuring Head |
POA |
|
THRH-M12X1.25 |
M12 X 1.25 Thread
Measuring Head |
POA |
|
THRH-M12X1.5 |
M12 X 1.5 Thread
Measuring Head |
POA |
|
THRH-M12X1.75 |
M12 X 1.75 Thread
Measuring Head |
POA |
|
THRH-M14X1.5 |
M14 X 1.5 Thread
Measuring Head |
POA |
|
THRH-M16X1.0 |
M16 X 1.0 Thread
Measuring Head |
POA |
|
THRH-M16X1.5 |
M16 X 1.5 Thread
Measuring Head |
POA |
|
THRH-M16X2.0 |
M16 X 2.0 Thread
Measuring Head |
POA |
|
THRH-M18X1.25 |
M18 X 1.25 Thread
Measuring Head |
POA |
|
THRH-M18X1.5 |
M18 X 1.5 Thread
Measuring Head |
POA |
|
THRH-M20X1.0 |
M20 X 1.0 Thread
Measuring Head |
POA |
|
THRH-M20X1.5 |
M20 X 1.5 Thread
Measuring Head |
POA |
|
THRH-M20X2.5 |
M20 X 2.5 Thread
Measuring Head |
POA |
|
THRH-M4X0.7 |
M4 X 0.7 Thread
Measuring Head |
POA |
|
THRH-M5X0.8 |
M5 X 0.8 Thread
Measuring Head |
POA |
|

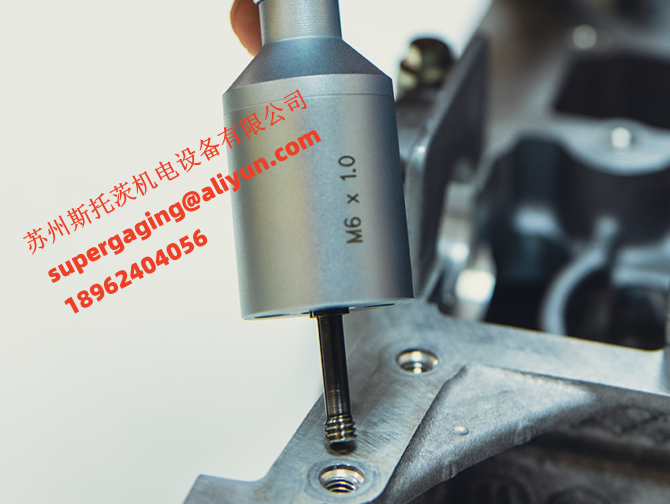

THRH-M6X1.0 |
M6 X 1.0 Thread
Measuring Head |
POA |
|
THRH-M8X1.25 |
M8 X 1.25 Thread
Measuring Head |
POA |
|
THRH-1-12 |
1" - 12 UN
Thread Measuring Head |
POA |
|
THRH-1/4-20 |
1/4" - 20 UN
Thread Measuring Head |
POA |
|
THRH-3/4-16 |
3/4" - 16 UN
Thread Measuring Head |
POA |
|
THRH-5/16-24 |
5/16" - 24 UN
Thread Measuring Head |
POA |
|
THRH-5/8-11 |
5/8" - 11 UN
Thread Measuring Head |
POA |
|
THRH-5/8-18 |
5/8" - 18 UN
Thread Measuring Head |
POA |
|
THRH-7/16-20 |
7/16" - 20 UN
Thread Measuring Head |
POA |
|
THRH-9/16-18 |
9/16" - 18 UN
Thread Measuring Head |
POA |
苏州斯托茨机电设备有限公司专业代理销售内螺纹测量仪，宝禾内螺纹测量中径、螺纹中径测量千分尺、同时我们销售美国GSG内螺纹测量量具、API石油量规、cameron ball gage、INSIZE数显深度尺、INSIZE数显卡尺、日本三丰粗糙度仪、日本三丰数显卡尺、三丰数显孔径量规、schwenk subito系列量具、美国Dorsey Metrology量具、FLEXBAR印模胶泥等。
